Based on the reduced size of the new HuDe ignition device BF14, it's possible to integrate our data aquisition system TRC to the well-known HuDe I2C ignition devices now.

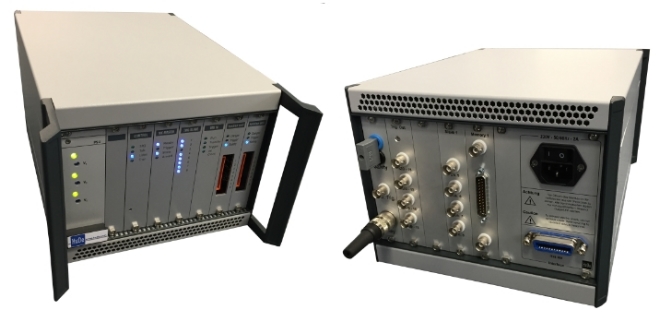

We created a new device of this equipment combination and we call it HuDe i2DAQ.

HuDe i2DAQ extends our product family of ignition devices and is available starting from now!

Technical data:

• 2 independent ignition channels (type BF14)
• 8 TRC channels for data recording used for:
• 2 x ignition current (intern)
• 2 x ignition voltage (intern)
• 4 x for free use/BNC voltage input (extern)
• 4 external trigger outputs (TTL) for triggering of external devices, e.g. high-speed cameras
• Dimensions (WxLxD)/Weight: 185x235x315 mm/4500g
